LOVINGCOOL TRACE A700 MID TOWER PC BLACK CASE | NO FANS INCLUDED

Model Name: Trace A700

• Product Type: Mid-Tower ATX PC Case

• Color: Matte Black

• Chassis Material: SPCC Steel Frame with Tempered Glass Side Panel

• Pre-Installed Fans: None (0 Fans Included)

• Motherboard Support: ATX, Micro-ATX, Mini-ITX

• Expansion Slots: 7 Standard PCI Slots

• Power Supply Support: Bottom-Mounted Standard ATX PSU (up to 160mm - 180mm length)

FAN &!important; COOLING SUPPORT

• Front Fan Support: 3 x 120mm or 2 x 140mm Fans

• Top Fan Support: 2 x 120mm or 2 x 140mm Fans

• Rear Fan Support: 1 x 120mm Fan

• PSU Shroud Support: 2 x 120mm Fans (Model-dependent)

• Radiator Support (AIO Liquid Cooling):

- Front: 120mm / 240mm / 280mm Radiator

- Top: 120mm / 240mm Radiator

- Rear: 120mm Radiator

CLEARANCE SPECIFICATIONS

• CPU Cooler Height Clearance: Up to 160mm - 165mm

• GPU (Graphics Card) Length Clearance: Up to 320mm - 340mm

• PSU Length Clearance: Up to 180mm

• Cable Management Space: Approx. 18mm - 22mm Clearance Behind Motherboard Tray

DRIVE BAY CAPACITY

• 3.5-Inch HDD Bays: 2 x 3.5" Drive Bays (Internal Drive Cage)

• 2.5-Inch SSD Bays: 2 x 2.5" Drive Mounts (Behind Motherboard Tray / Top of PSU Shroud)

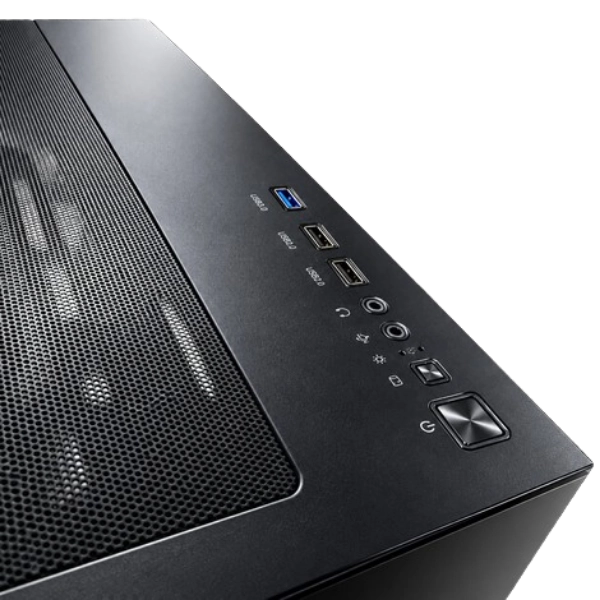

FRONT I/O PANEL &!important; CONTROLS

USB Ports:

- 1 x USB 3.0 Type-A

- 2 x USB 2.0 Type-A

• Audio Interface: 1 x HD Audio Jack (3.5mm Headphone), 1 x Microphone Jack (3.5mm)

Buttons &!important; Switches: Power Button, Reset Button / LED Mode Switch

• Dust Filtration: Magnetic Dust Filter (Top Panel), Slide-Out Dust Filter (Bottom PSU Intake)

PHYSICAL SPECIFICATIONS

• Dimensions (L x W x H): Approx. 380 x 200 x 450 mm

• Weight: Approx. 4.2 kg - 4.8 kg

• Side Panel Material: Full-Sized Scratch-Resistant Tempered Glass
